SMC-3200 Trench Slip-form Paver Concrete Paver Products
Product Specifications
| Video outgoing-inspection |
Provided |
| Machinery Test Report |
Provided |
| Core Components |
Engine, hydraulic pump, vibrating spear |
| Weight |
6000 kg |
| Warranty |
1 Year |
| Maximum paving depth |
850mm |
| Pavement maximum paving width |
2000mm |
| Maximum Paving Thickness |
200mm |
| Paving width |
0-2100mm |
| Driving Speed |
0-1.2km/h |
| Paving Speed |
0-11.6m/min |
| Warranty of core components |
3 years |
| Condition |
New |
| Applicable Industries |
dam filling, dam, Tunnel roadbed, gutterway |
Product Overview

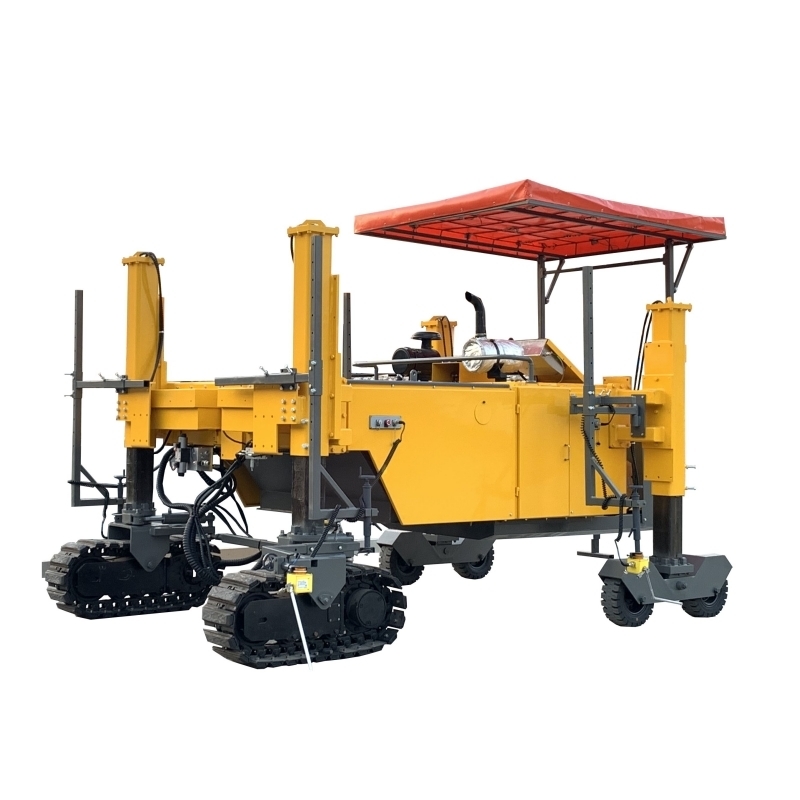

The SMC-3200 cement concrete slipform paver is a specialized construction equipment independently developed for small and medium-sized concrete structures. This advanced machine offers significant advantages over traditional prefabrication and fixed mold cast-in-place processes, delivering faster construction speed, higher efficiency, and superior quality.
Key Features
Powerful Performance: Equipped with strong engine power, full electronic control, and full hydraulic drive system with two crawler drives. Includes an automatic steering and leveling control system for precise operation.
Versatile Operation: Capable of completing vibration compaction, paving, forming, and other processes of cement concrete structures in a single pass.
Technical Specifications
| Three boxes volume |
| Fuel tank |
190L |
| Hydraulic tank |
200L |
| Water tank |
600L |
| Walking parameters |
| Paving speed |
0-11.6m/min |
| Driving speed |
0-1.2km/h |
| Climbing ability (working state) |
20% |
| Track Steering Angle |
25°(left),36°(left) |
| Flatness |
3mm/3m |
| Vehicle height adjustment |
| Hydraulic height adjustment |
900mm |
| Mechanical height adjustment |
230mm |
| Basic Paving Parameters |
| The maximum paving width of the ditch |
2100mm |
| The maximum paving depth of the ditch |
850mm |
| Pavement maximum paving width |
2000mm |
| Pavement Maximum Paving Thickness |
200mm |
| Maximum working capacity |
50m3/h |
| Total Weight |
6t |
| Overall Dimensions |
| Total length |
4450mm/4450mm |
| Total width |
2720mm/(road 2430mm, container 1900mm) |
| Total height |
3400mm/(road 2200mm, container 2200mm) |
| Vibrator |
| Number of ports |
6 |
| Vibrator form |
Hydraulic Straight Vibrator |
| Adjustment method |
Manual scaling |
Operational Modes
The SMC-3200 offers flexible walking modes to adapt to various construction conditions:
Two Crawler Drive: When roadbed conditions permit, two crawlers can be installed on the front side of the paver for embankment walking.
Four-Wheel Driven Walking: Alternative configuration for different terrain requirements.
Transportation
The SMC-3200 meets container transportation requirements. For transport, the configuration can be modified by changing to a single crawler belt and adjusting the rear column installation position inward.
Frequently Asked Questions
Q: What kind terms of payment can be accepted?
A: We accept L/C, T/T, D/A, D/P, and Western Union payments.
Q: What certificates are available for the machinery?
A: Our equipment comes with ISO certification.
Q: What is the delivery time?
A: Delivery typically takes 7-30 days after receiving deposit.
Q: What is the warranty period?
A: The standard warranty is 12 months after shipment (3 years for core components).
Q: What is the Minimum Order Quantity?
A: MOQ is 1 unit.
