SMC-5500 Slipform Paver New 15000kg with 3-Year Engine Warranty

Ürün Ayrıntıları

Menşe yeri: Jiangsu, Çin

Marka adı: Siming

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1

Fiyat: US$234,000

En İyi Fiyatı Alın

Ürün Ayrıntıları

Ürün Tanımı

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMC-5500 slipform paver with warranty, 15000kg slipform paver new, slipform paver 3-year engine warranty


Ağırlık:	15000 kilo	Döşeme Yüksekliği:	0-1800mm
kaldırım genişliği:	0-2500mm	Sürüş hızı:	0-33 m/dak
Asfaltlama hızı:	0-8m/dak	Düzlük:	± 3 mm/3m
Vibratör markası:	Wyco	Vibratör arayüzü:	8
Vibratör frekansı:	0-167Hz	Yakıt deposu:	230L (standart)+120L (isteğe bağlı)
Su deposu:	500L	Motor:	Shangchai SC4H160G4
Oran gücü:	118kw/2200rpm	Emisyon Standardı:	Faz ⅳ
Taşıma boyutu:	700022502860 mm

Ağırlık:	15000 kilo
Döşeme Yüksekliği:	0-1800mm
kaldırım genişliği:	0-2500mm
Sürüş hızı:	0-33 m/dak
Asfaltlama hızı:	0-8m/dak
Düzlük:	± 3 mm/3m
Vibratör markası:	Wyco
Vibratör arayüzü:	8
Vibratör frekansı:	0-167Hz
Yakıt deposu:	230L (standart)+120L (isteğe bağlı)
Su deposu:	500L
Motor:	Shangchai SC4H160G4
Oran gücü:	118kw/2200rpm
Emisyon Standardı:	Faz ⅳ
Taşıma boyutu:	700022502860 mm

SMC-5500 Slipform Paver New 15000kg with 3-Year Engine Warranty

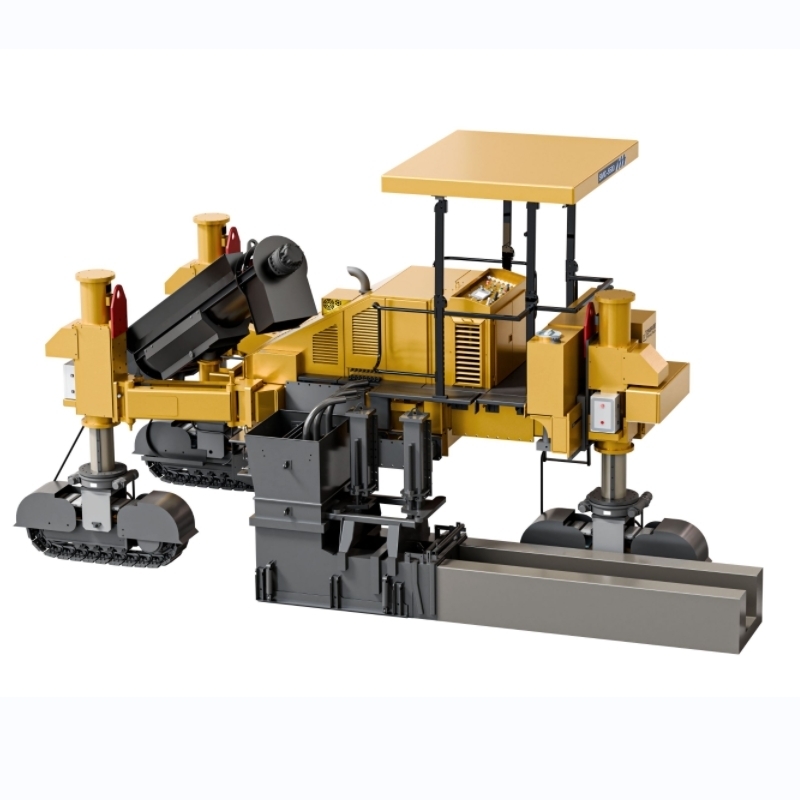

SMC-5500 Intelligent Slipform Paver

New condition core component engine with three tracks concrete spreader designed for professional construction applications.

Key Specifications

Attribute	Value
Core Components	Engine, hydraulic pump, vibrating spear
Weight	15000 kg
Warranty	1 Year (3 years for core components)
Unique Feature	Short turning radius
Paving Dimensions	Height: 0-1800mm, Width: 0-2500mm
Speed	Driving: 0-33 m/min, Paving: 0-8m/min
Applicable Industries	Highway, Tunnel roadbed, Ditch construction

Application Conditions

Designed for various construction fields including:

Highway and municipal road construction: curb, central isolation belt, anti-collision wall, slope protection, drainage ditch, cement pavement
Railway construction: retaining wall, drainage ditch
Agriculture and water conservancy: anti-seepage channels, slope protection and pavement hardening

Paving width

0-2500 mm

Paving height

0-1800mm

Flatness

±3 mm/3m

Engine

Shangchai SC4H160G4 (118Kw/2200rpm, Phase IV emission standard)

Transport dimensions

7000*2250*2860 mm

Functional Features

Optimized operator platform: Clear layout with rapid control response for efficient operation
Energy efficient system: Eco mode automatically matches optimal working state for reduced emissions
High-performance vibration: WYCo square shell vibrator with 8 vibration oil roads (expandable to 10)
Precision control: International brand servo valve for smooth column lifting and excellent flatness
Flexible track system: Adjustable crawler columns with swing arms for mold position flexibility
Multiple steering modes: Forward, crab, cooperative and spot steering for superior maneuverability
Large-angle track rotation: ±130° steering angle for efficient positioning and transitions
Smooth operation: High-speed ratio reducer with international brand hydraulic motor
Compact transport: Electrically foldable roof for economical truck transportation
