SMC - 6500 Concrete Slipform Paver: Advanced Concrete Paving Solution

Name: SMC - 6500 Concrete Slipform Paver: Advanced Concrete Paving Solution
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-6500
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: Çin

Marka adı: SIMING

Sertifika: ISO9001/CE

Model numarası: SMC-6500

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 Adet

Ambalaj bilgileri: konteyner

Teslim süresi: 30-45 gün

Ödeme koşulları: L/C, T/T

En İyi Fiyatı Alın

Ürün Ayrıntıları

Ürün Tanımı

Vurgulamak:
                                                                                                                                                                                                                                                                                                                SMC 6500 concrete slipform paver, concrete paving machine with warranty, slipform paver for concrete construction


kaldırım genişliği:	2500-4500 mm	Garanti:	1 yıl
Döşeme derinliği:	0-15 m/dak	Seyahat hızı:	0-1,8 km/saat
Toplam ağırlık:	19,5 ton	Titreşim frekansı:	0-167Hz
Yakıt kapasitesi:	320 litre	Su deposu kapasitesi:	550 litre

kaldırım genişliği:	2500-4500 mm
Garanti:	1 yıl
Döşeme derinliği:	0-15 m/dak
Seyahat hızı:	0-1,8 km/saat
Toplam ağırlık:	19,5 ton
Titreşim frekansı:	0-167Hz
Yakıt kapasitesi:	320 litre
Su deposu kapasitesi:	550 litre

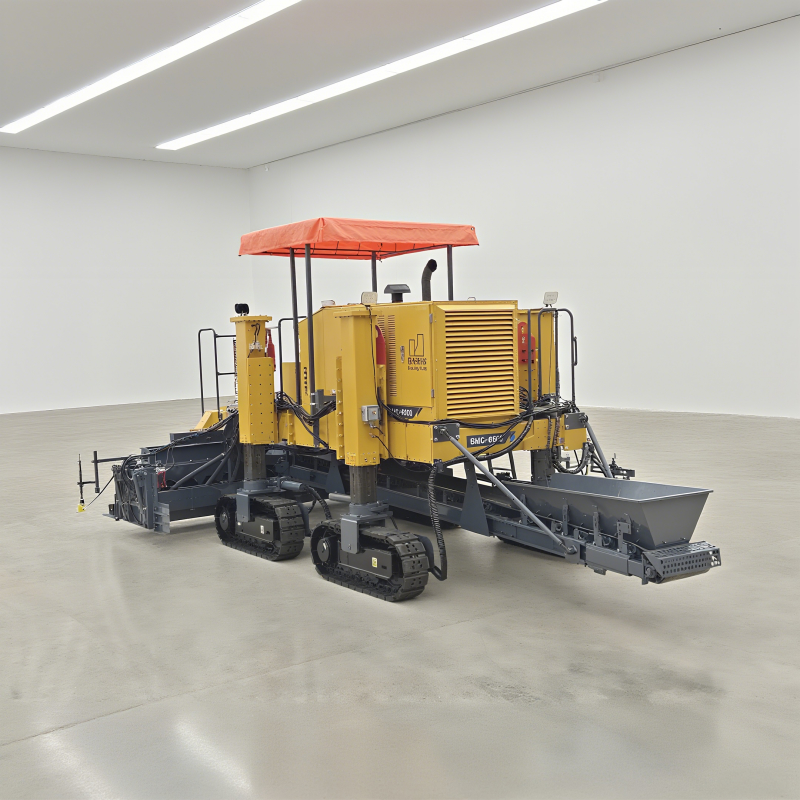

SMC - 6500 Concrete Slipform Paver: Advanced Concrete Paving Solution

4.5-meter rear-mounted mold cement slipform paver designed for rural road construction projects.

Application Conditions

The SMC-6500 slipform paver is independently developed concrete construction equipment, primarily used for high-standard pavement projects. Featuring large power reserve, full electronic control, hydraulic drive, and four-track travel, it incorporates automatic steering and leveling systems to complete the entire process of cement concrete feeding, distribution, vibration, compaction, paving, and smoothing in one operation. The rear-mounted mold design solves road base clearance issues, enabling negative clearance construction, making it ideal for county and rural roads without shoulders.

Functional Features

Shangchai 6-cylinder engine with electric preheating, high power output suitable for high-altitude construction; High-pressure common rail control compliant with National III emission standards (National IV optional)
Advanced industrial CAN bus communication system between control panel and main control box for simplified, reliable operation
User-friendly widescreen LCD display showing machine status with intuitive fault indications
Full track steering system with positioning function for multiple steering modes and quick positioning under various conditions
Automatic leveling system ensures paved surface smoothness and quality of auxiliary facilities
Automatic steering function creates perfect linearity during paving
Four elongated tracks enhance ground adhesion capability
Rear-mounted mold enables negative gap construction for rural and shoulder-less roads, with high-pressure water gun system for cleaning
550L large water tank for continuous operation

Technical Parameters

Parameter	Value
Paving width	2500-4500 mm
Paving height	0-300 mm
Flatness	±3 mm/3m
Paving Speed	0-15 m/min
Driving speed	0-1.8 km/h
Vibrator brand	WYCO
Vibrator interface	12
Vibrator frequency	0-167 Hz
Fuel tank	320L
Water tank	550L
Engine	Shangchai SC7H180G3
Rate power	132Kw/2200rpm
Emission standard	Phase IV (Phase III optional)
Feed system	Belt
Weight	19.5 t
Transport size (LWH)	750030002800 mm

Project Cases
